Field Tank Construction
70,000 Barrels of Increased Gasoline Storage

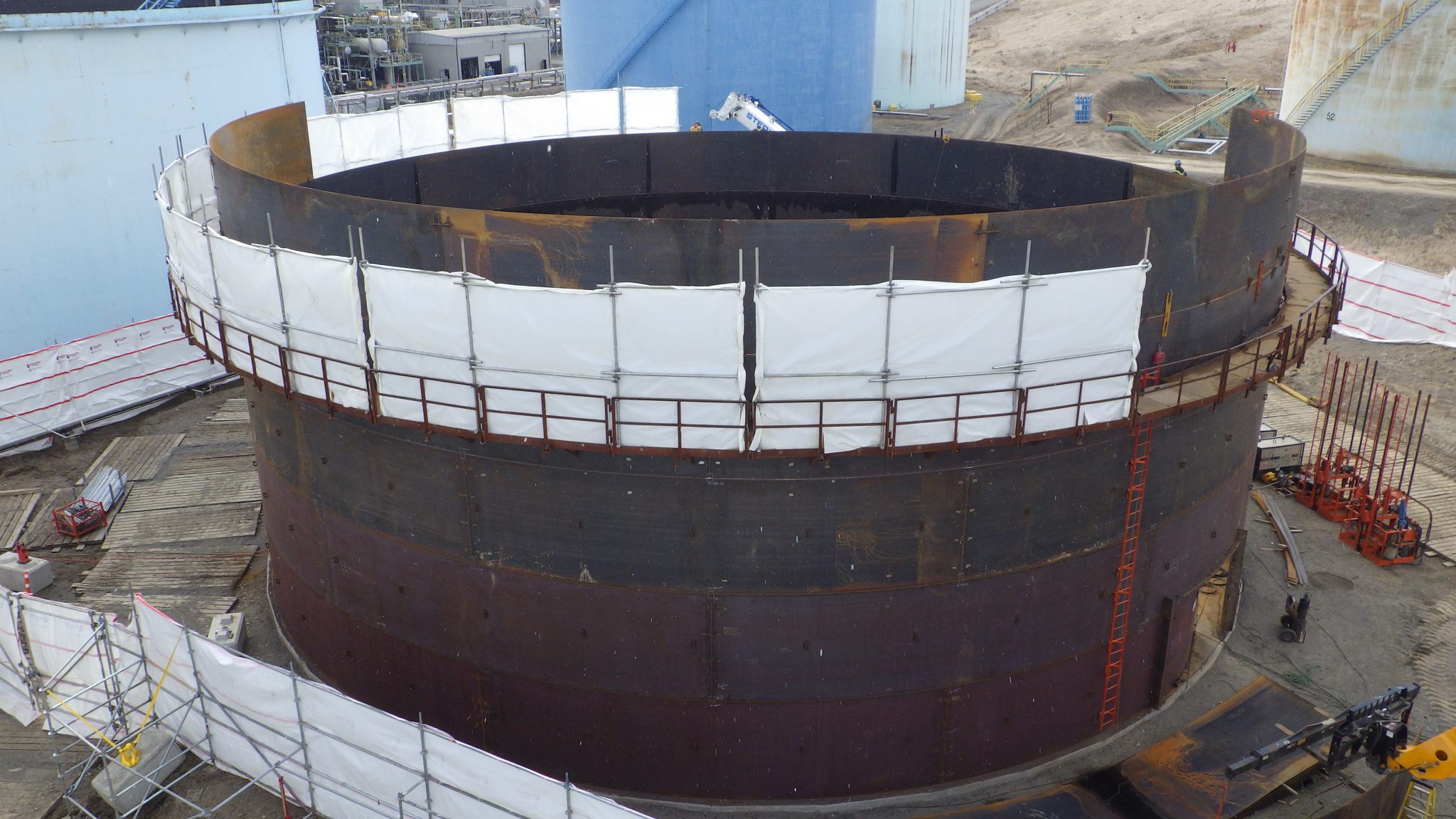

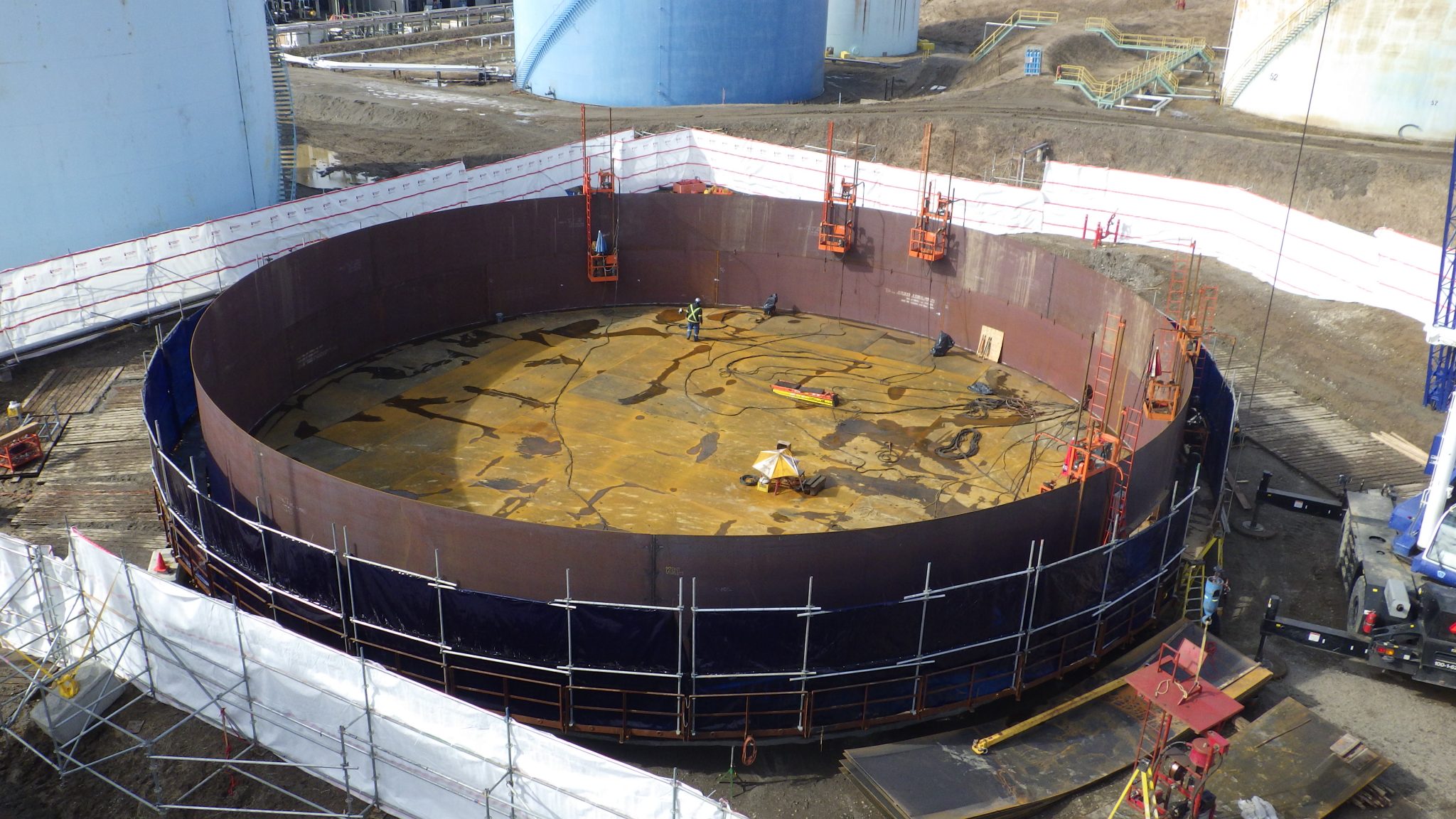

This new 70,000 bbl gasoline storage tank was constructed in the middle of a highly congested, fully operational facility in Northeastern British Columbia. The area required 100% spark containment with the use of external scaffold and hoarding provided by a local contractor within the area. Following mechanical construction, the installation of a full contact internal floating roof, internal coating and external painting were completed in line with the expedited project scheduling demands.
Project Highlights:
- 100% spark containment was required during construction of the tank
- Installation of a full contact, internal floating roof
- Internally coated on floor and lower shell course and externally painted
- Executed safely and efficiently, without incident
- Project Size: 94'-4" Diameter x 56'-0" High
- Project Type: New Tank Construction
- Completion Date: June 2021
- Service: Gasoline
